| Timing Belt |
|
| Model and Size£º |

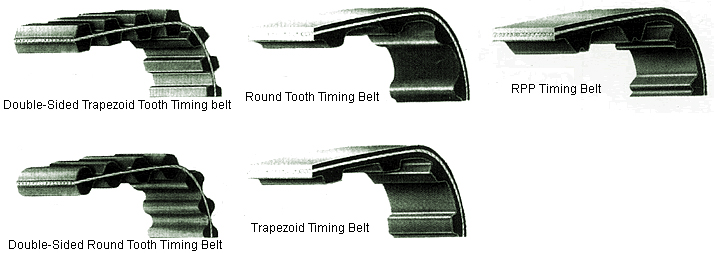

| A Trapezoid tooth timing belt for industry |
| Model |
Pb |
Height |
Thickness |
Angle2
¦Â¡ã |
| MXL |
2.032 |
0.51 |
1.14 |
40 |
| XL |
5.080 |
1.27 |
2.30 |
¡¡50¡¡ |
| L |
9.525 |
1.91 |
3.60 |
40 |
| H |
12.70 |
2.29 |
4.30 |
40 |
| XH |
22.225 |
6.35 |
11.20 |
40 |
| XXH |
31.750 |
9.53 |
15.70 |
40 |
| T2.5 |
2.5 |
0.7 |
1.30 |
40 |
| T5 |
5 |
1.20 |
2.20 |
40 |
| T10 |
10 |
2.50 |
4.50 |
40 |
| T20 |
20 |
5.00 |
8.00 |
40 |
| AT5 |
5 |
1.20 |
2.70 |
50 |
| AT10 |
10 |
2.50 |
5.00 |
50 |
| AT20 |
20 |
5.00 |
8.00 |
50 |
| |
|
Example£º
037 - 0.37Inch Width
XL - Model
120 ¨C Length 120 Inch |
Trapezoid tooth timing belt
 |
|
|
| |
| Tooth model |
Model |
Pb |
Height |
Thickness |
| HTD |
3M |
3 |
1.17 |
2.4 |
| 5M |
5 |
2.06 |
3.8 |
| 8M |
8 |
3.36 |
6.00 |
| 14M |
14 |
6.02 |
10.00 |
| 20M |
20 |
8.4 |
13.20 |
| STPD/STS |
S2M |
2 |
0.76 |
1.36 |
| S3M |
3 |
1.14 |
1.9 |
| S4.5M |
4.5 |
1.71 |
2.81 |
| S5M |
5 |
1.91 |
3.4 |
| S8M |
8 |
3.05 |
5.3 |
| S14M |
14 |
5.3 |
10.2 |
| RPP/HPPD |
RP2M |
2 |
0.76 |
1.36 |
| RP3M |
3 |
1.15 |
1.9 |
| RP5M |
5 |
1.95 |
3.5 |
| RP8M |
8 |
3.2 |
5.5 |
| RP14M |
14 |
6.00 |
10 |
|
| |
|
|
Example:
30 - width£¨mm£©
1250 - Length£¨mm£©
T10 - model |
 |
 |
| |
|
|
| |
|
|
|
|
|
|
